RAID 5 file recovery

Ruth Holt, our Customer Service Manager says:

"Recovering data from a RAID 5 array can be complex due to its distributed parity architecture. Here I break down the key factors and challenges in detail."

1. RAID 5 Architecture Recap

RAID 5 stripes data across multiple drives and stores parity blocks distributed across all drives.
Parity allows for single-drive failure recovery.
Data is reconstructed using the XOR operation on remaining data and parity.

2. Complexity Factors in RAID 5 Recovery

a. Single Disk Failure

Relatively straightforward.
RAID controller can rebuild missing data using XOR of remaining disks.
Challenges:
- If the replacement drive is inserted too late, the chance of a second drive failing during rebuild increases.
- Rebuilding large arrays can take hours or days.

b. Multiple Disk Failures

RAID 5 can only tolerate one drive failure.
Recovery becomes exponentially more complex with two or more failed drives.
Requires:
- Advanced software capable of reconstructing missing data.
- Knowledge of parity rotation scheme (how parity is distributed across drives).

c. Logical Corruption

RAID may appear functional, but filesystem corruption can prevent access.
Recovery steps:
- Rebuild RAID at disk level without overwriting data.
- Repair the filesystem (e.g., NTFS, EXT4) after RAID reconstruction.
Complexity increases if:
- File allocation tables are corrupted.
- Metadata for striping is inconsistent.

d. Drive Order and Parity Knowledge

Misidentifying drive order or parity location can make data unrecoverable.
RAID 5 arrays do not store metadata about striping order; manual reconstruction may be required.

3. Tools and Methods

Hardware RAID Recovery:
- Use the original controller if possible.
- Risk of overwriting parity during rebuild is high if multiple drives fail.
Software RAID Recovery:
- Tools like R-Studio, UFS Explorer, or ReclaiMe can reconstruct RAID 5 by analyzing data patterns and parity.
Forensic-level Recovery:
- Required when multiple disks fail or file corruption exists.
- Involves manually calculating parity and reassembling data.

4. Time and Resource Complexity

Time complexity is roughly O(n * block_size) per missing drive, where n is the number of drives.
Larger drives and arrays increase I/O bottlenecks.
Rebuilding or reconstructing RAID 5 can require significant CPU and memory resources.

5. Summary of Complexity

Factor	Complexity Level	Notes
Single drive failure	Low	Hardware/software can rebuild easily
Two or more drives fail	Very High	Manual parity reconstruction needed
File system corruption	Medium–High	Requires both RAID and filesystem recovery
Drive order/parity unknown	High	Risk of irrecoverable data
Large arrays (multiple TBs)	Medium–High	Time and I/O intensive

Key Takeaway

RAID 5 recovery ranges from straightforward (single drive failure) to extremely complex (multiple drives fail or logical corruption). Success depends on speed, correct reconstruction, and proper knowledge of parity and striping.

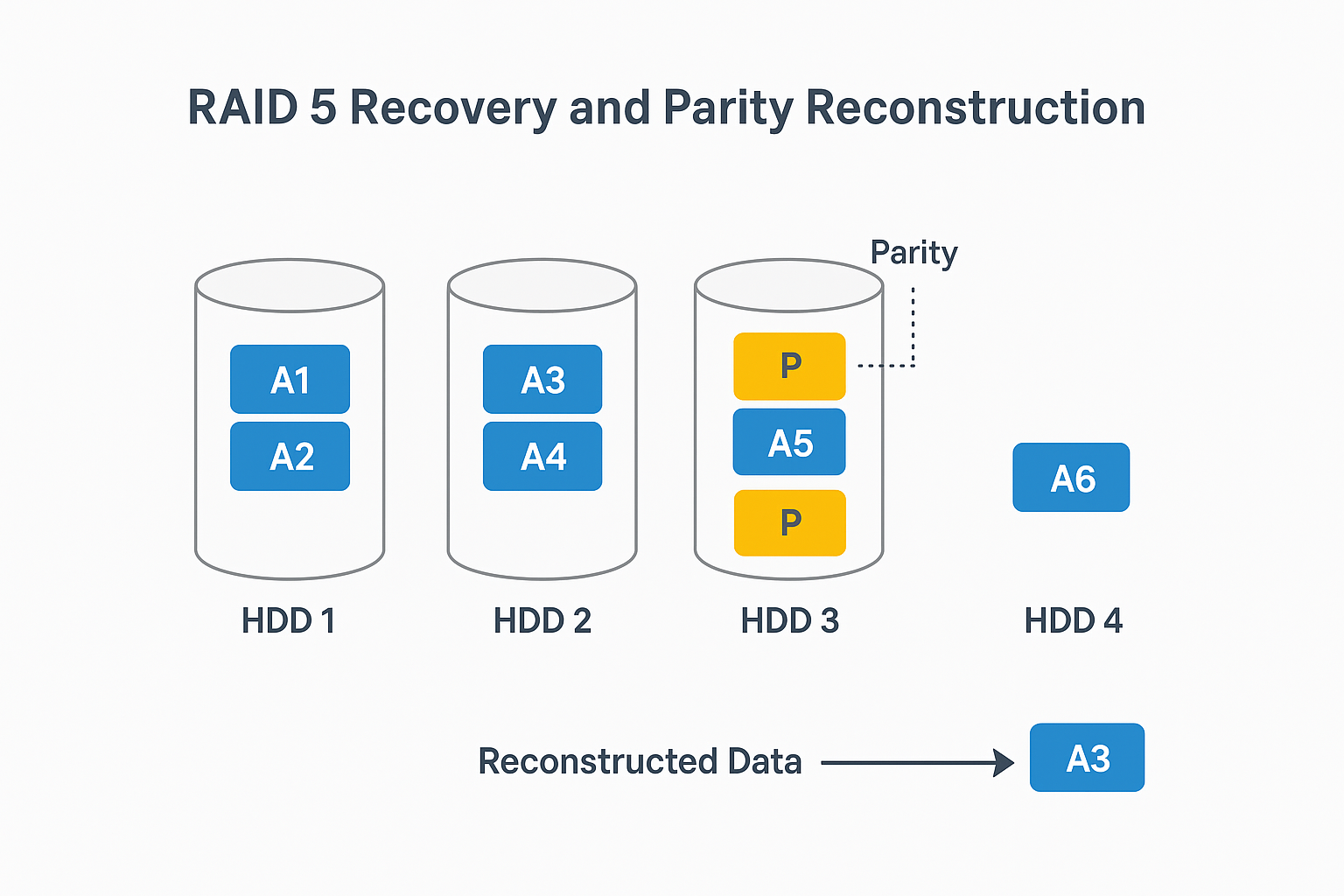

RAID 5 Recovery Diagram
